Underbody Mounted Motorized Dump Truck System
Premium and Reliable Tarping Solution for Dump Trailers
Description
Our Underbody Mounted Motorized Dump Truck System is a premium aluminum tarping system featuring a solid aluminum lower arm powered by our 90:1 direct drive motor, designed for dump bodies up to 39' long. The ‘Unbreakable’ arm includes 30-degree bends, and the springs are enclosed by high-impact covers to maximize their lifespan. The system can be bolted or welded for assembly.

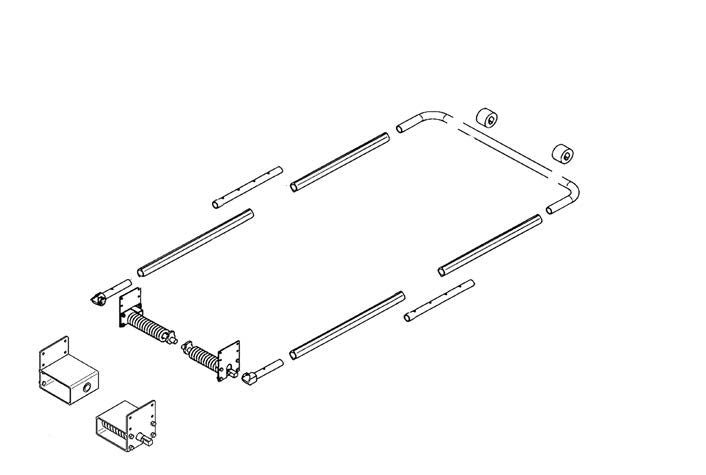

| Included Parts | Qty |
|---|---|
| TS1541 - UNDERBODY 10-TORSION SPRING ASSY. (D) (FOR DUMP TRAILERS) | 1 |
| TS1540 - UNDERBODY 10-TORSION SPRING ASSY. (D) (FOR DUMP TRAILERS) | 1 |
| TS1336 - TERM/MTN. U/BODY PIVOT CASTING | 2 |
| TS1400 - TSA10/MTN. ALUM. SIDE ARM (10') | 2 |
| TS1403 - TERM/MTN. BULLETPROOF BENT ARM 10' W/ 30 (ADD FOR FREIGHT) | 2 |
| TS1512 - MTN/TERM. ARM CONNECTER/COUPLING | 2 |
| TS1294 - TERM/MTN. STEEL REAR CROSS (1-1/2'' X 102'') - 3 PC. W/CORNERS | 1 |
| TS1527 - MTN/TERM 4'' RUBBER CENTERING FLANGE (FOR STEEL) | 2 |
| TS1266 - 5'' STUD SHAFT - STEEL | 1 |
| TS1292 - AXLE SPOOL MOUNTING BRACKET - ALUMINUM | 2 |
| TS1257 - 3/4'' BEARING & COLLAR | 2 |
| DS1036 - 11147 WIRE 6GA. RED/BLACK BONDED/MOLDED | 50' |
| TS1305 - 5540710 ROTARY SWITCH KIT ASSEMBLY | 1 |
| TS1348 - DUMP TRAILER REPLACEMENT 90:1 MOTOR (UP TO 38') S/N # | 1 |
Features
- Premium Aluminum Construction: Ensures durability and long-lasting performance.
- Unbreakable Arm Design: 30-degree bends for added strength and flexibility.
- High-Impact Covers: Encloses springs to maximize lifespan.
- Direct Drive Motor: 90:1 ratio for powerful and efficient operation.
- Flexible Mounting Options: Bolt or weld-on assembly for ease of installation.
Applications
- Dump Trailers: Ideal for trailers up to 39' long.
- Heavy-Duty Use: Suitable for demanding environments requiring robust and reliable tarping systems.
