Side Mounted Motorized Dump Truck System
Couldn't load pickup availability
Side Mounted Motorized Dump Truck System
Efficient and Reliable Tarping Solutions for Dump Trucks
Description
The side-mounted motorized dump truck tarping system is a complete package designed to provide efficient and reliable tarping solutions for dump trucks up to 26 feet in length. This system includes all the necessary parts to get you on the road with a new tarping system, featuring polished aluminum arms, four side-mounted spiral torsion springs, and a powerful 60:1, 1.5 HP motor.
Key Features
- Polished Aluminum Arms: Lightweight and durable, the aluminum arms ensure long-lasting performance and a sleek appearance.
- 4 Side-Mounted Spiral Torsion Springs: Provide the necessary tension and support for smooth tarping operations.
- Powerful 60:1, 1.5 HP Motor: Ensures reliable and efficient operation, capable of handling heavy-duty tarping tasks.
- Complete System: Includes all the parts needed for installation, making it easy to set up and start using immediately.

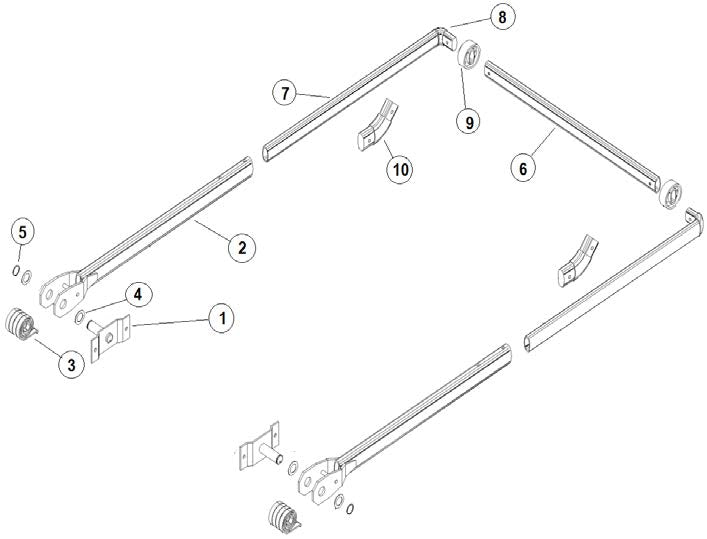

Included Components
| Part | Qty |
|---|---|
| TS1256 - 4-SPRING PIVOT PIN | 2 |
| TS1284 - 4-SPRING ALUM. PIVOT ARM (TSI-78) | 2 |
| TS1524 - FLAT COIL TORSION SPRING (LONG) | 8 |
| TS1258 - STAINLESS BUSHING | 4 |
| TS1259 - EXTERNAL RETAINING RING | 2 |
| TS1277 - REAR CROSS (ADJUSTABLE) - ALUMINUM | 1 |
| TS1281 - ALUM. UPPER ARM W/90 (98) | 2 |
| TS1276 - PLASTIC TARP CENTERING FLANGE (FOR ALUM.) | 2 |
| TS1265 - ALUMINUM AXLE ROLLER BAR 1-1/2'' (93-110) | 1 |
| TS1266 - 5'' STUD SHAFT - STEEL | 1 |
| TS1292 - AXLE SPOOL MOUNTING BRACKET - ALUMINUM | 2 |
| TS1257 - 3/4'' BEARING & COLLAR | 1 |
| DS1036 - 11147 WIRE 6GA. RED/BLACK BONDED/MOLDED | 50' |
| TS1305 - 5540710 ROTARY SWITCH KIT ASSEMBLY | 1 |
| TS1341 - DUMP TRUCK REPLACEMENT 60:1 MOTOR | 1 |
Contact Us
For more information or to place an order, call us today at 800-532-8277. Trust Austin Tarp & Cargo Controls® for high-quality and reliable cargo securement solutions.
Phone: 800-532-8277
Address: 2901 Stewart Creek Blvd., Charlotte, NC 28216
